Wall Mounted Injector Kit 04
SKU: HCOBWMI04
This example was built for an abattoir and is again based around an ST168 injecting two chemicals. The injector setup does not have the capacity to supply compressed air.
Call for availability
t: 01493 688250
t: 01493 688250
Description

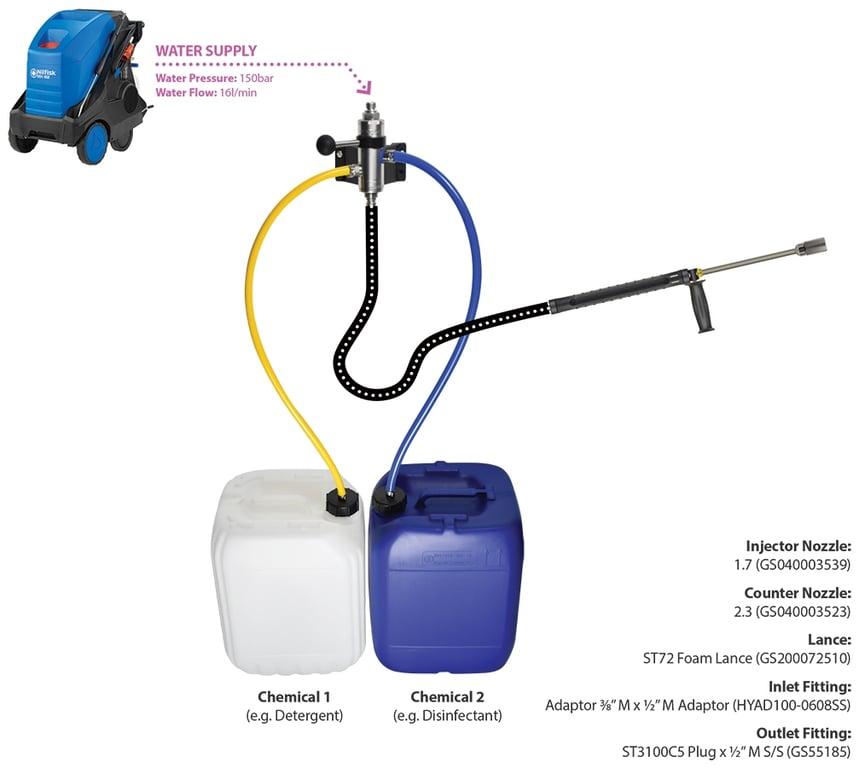

This example was built for an abattoir and is again based around an ST168 injecting two chemicals. The injector setup does not have the capacity to supply compressed air.

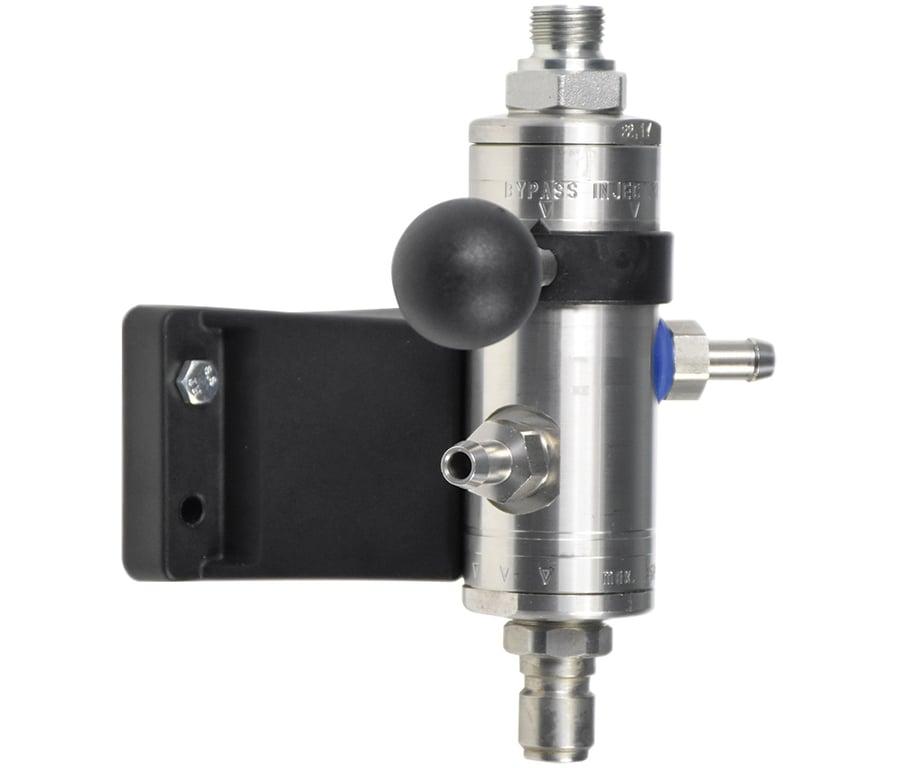

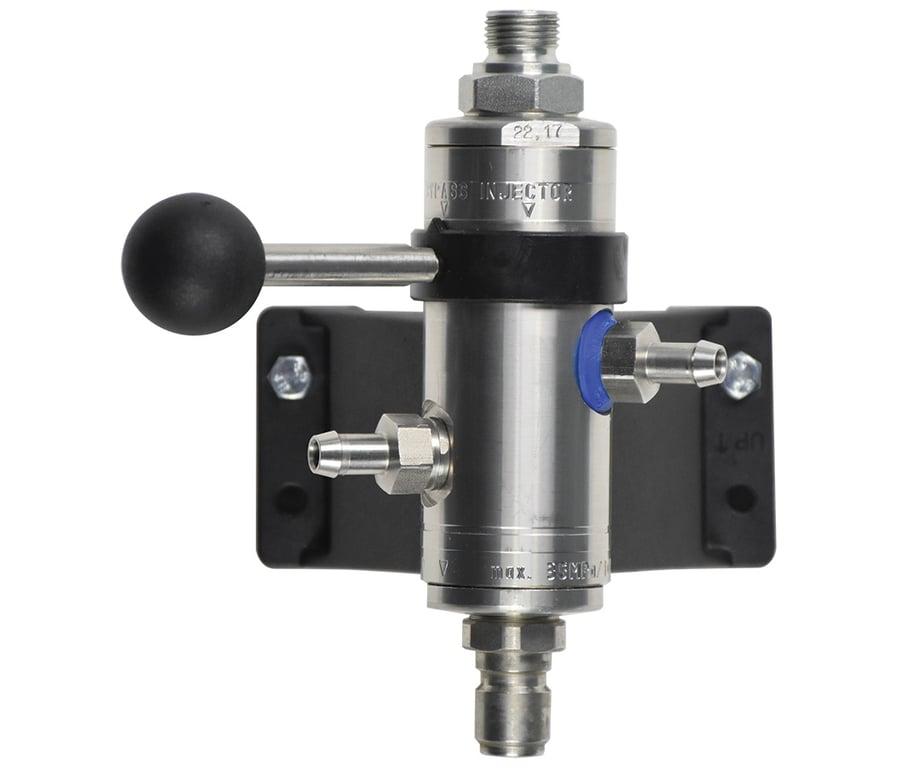

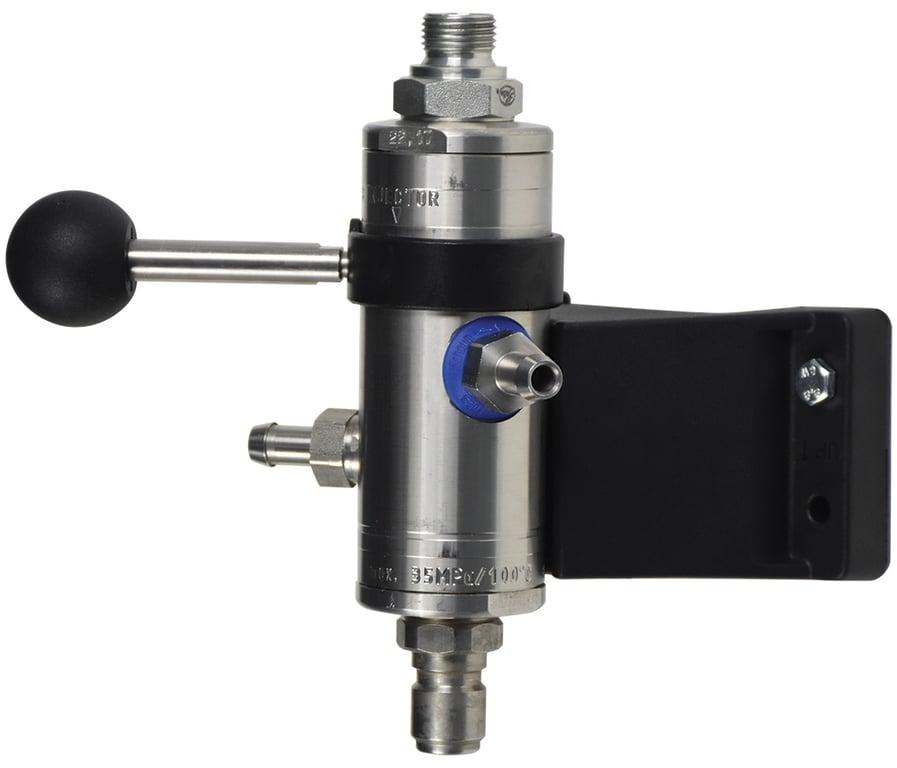

The injector has a 1.7 injector nozzle (GS040003539); 2.3 counter nozzle (GS040003523) and an ST72 foam lance to support a 150bar/16l/min water supply.
Technical Specification
Injector Nozzle
1.7 (GS040003539)
Counter Nozzle
2.3 (GS040003523)
Lance
ST72 Foam Lance (GS200072510)
Inlet Fitting
Adaptor 3/8” M x ½” M Adaptor (HYAD100-0608SS)
Outlet Fitting
ST3100C5 Plug x ½” M S/S (GS55185)
