Wall Mounted Injector Kit 02
SKU: HCOBWMI02
This example was built for a poultry processor and is based around an ST164 injecting two chemicals however this setup isn’t utilising a compressed air supply.
Call for availability
t: 01493 688250
t: 01493 688250
Description

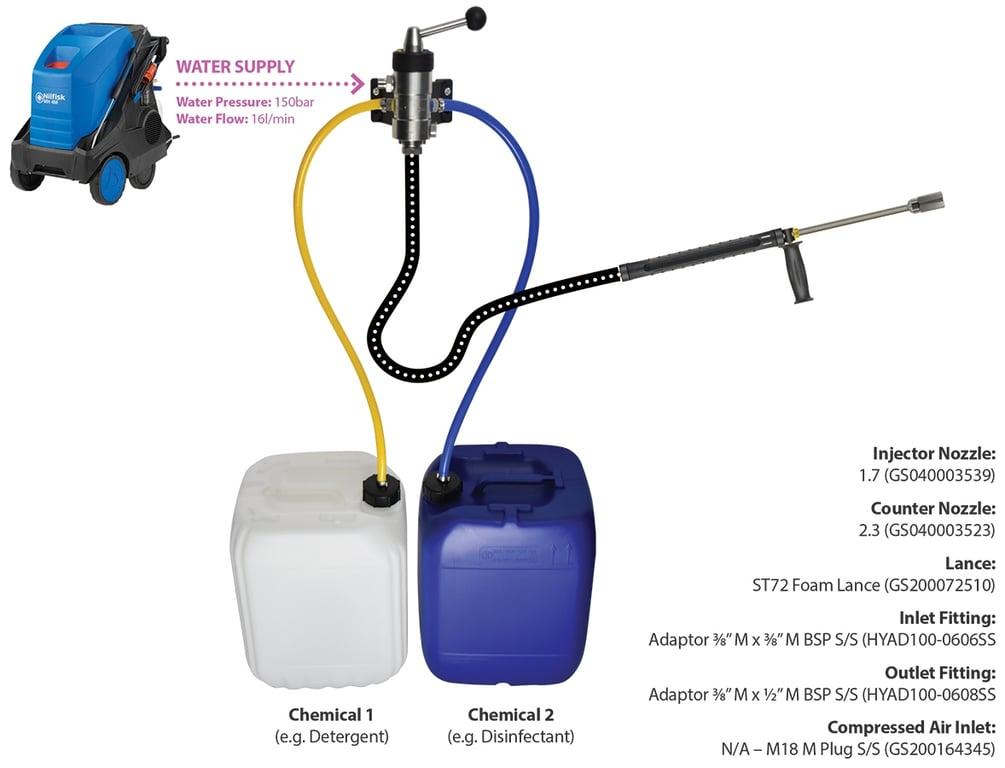

This example was built for a poultry processor and is based around an ST164 injecting two chemicals however this setup isn’t utilising a compressed air supply.
The injector has a 1.7 injector nozzle (GS040003539); 2.3 counter nozzle (GS040003523) and an ST72 foam lance to support a 150bar/16l/min water supply.
Technical Specification
Injector Nozzle
1.7 (GS040003539)
Counter Nozzle
2.3 (GS040003523)
Lance
ST72 Foam Lance (GS200072510)
Inlet Fitting
Adaptor 3/8” M x 3/8” M BSP S/S (HYAD100-0606SS)
Outlet Fitting
Adaptor 3/8” M x ½” M BSP S/S (HYAD100-0608SS)
Compressed Air Inlet
N/A – M18 M Plug S/S (GS200164345)
