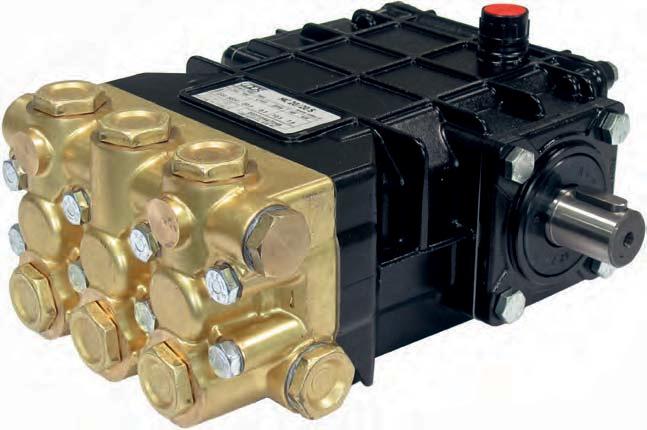

Udor M 4.0/20 S Plunger Pump
SKU: HC52014
M-Series High Pressure Plunger Pumps
Call for availability
t: 01493 688250
t: 01493 688250
Description
- 9-1/2" L x 8-1/2" W x 4-1/2" H (Solid Shaft Model)
- 1/2" Inlet 3/8" Outlet
- Brass Manifold
- Solid Ceramic Plungers
- Heat Treated Crankshaft
- Stainless Steel Check Valves
- Stainless Steel Piston Guides
- Direct Drive
- Electric Flange Models
- Industrial Quality Tapered Roller Bearings
- Replaceable PTFE Coated Body Guides
- Max. Fluid Temp. 160°F
- High Strength Aluminum Alloy Connecting Rods
- Heavy Duty Flat Base High Pressure Seals
- 20 oz. Capacity Vented Oil Bath Crank Case
Technical Specification
MAX RPM
1750
MAX FLOW (l/min)
15
MAX PRESSURE (bar)
140
MAX POWER (HP)
5.4
